Master Electrical Installation Insights With Data-Driven Dashboards
Every shipyard project manager knows the challenge of maintaining accurate visibility across a complex electrical installation. Thousands of cables, hundreds of equipment items, and multiple contractors generate an overwhelming volume of progress data every day. Traditional methods of collecting and consolidating this data — paper forms, shift-end summaries, weekly Excel reports — create a structural time lag between the reality on the vessel and the information available to management. By the time a coordinator receives a consolidated update, the situation has already moved on, and the numbers are no longer a reliable basis for decisions.
Cable Pilot’s Insights module delivers electrical installation insights directly from the field to management dashboards, without any manual consolidation step. As workers submit status updates through the smartphone app, every data point flows automatically into a suite of dedicated analytical dashboards. The result is a live, continuously updated picture of every installation phase — cable pulling, equipment mounting, cable connection, and transit sealing — available to every stakeholder who needs it. This is not a reporting tool that summarizes yesterday. It is a real-time installation dashboard that shows what is happening right now and projects what will happen next, giving you the clarity to manage proactively instead of reactively.
This shift from delayed, fragmented reporting to live, centralized analytics transforms the way projects are managed. Instead of spending hours compiling data from multiple sources, coordinators open a single dashboard and immediately see where work stands — by area, by deck, by contractor, and by system. The analytical layer is organized into five dedicated dashboards, each focused on a specific phase of the installation lifecycle, plus comprehensive statistics views that bring all dimensions together. Every chart, table, and KPI tile updates automatically as new field data arrives, ensuring that every decision is grounded in the most current information available.
Centralized Data as the Foundation for Insights
Reliable electrical installation insights begin with reliable data. Cable Pilot centralizes every cable list, equipment schedule, and project plan into a single digital platform. The import module ingests engineering data in standard formats and creates a structured record for every item. This unified foundation eliminates the fragmented spreadsheets and disconnected systems that make traditional electrical progress monitoring unreliable.
Once project data is centralized, every field update feeds directly into the analytical layer. There is no re-entry, no manual merging of contractor reports, no reconciliation of competing versions. The connection between source data and dashboard output is direct and automatic, so the insights you see always reflect the actual state of work on the vessel.
Five Dedicated Dashboards for Every Installation Phase
Cable Pilot organizes its analytical layer into five dedicated dashboards, each focused on a specific phase of the electrical installation lifecycle. The Cable Points dashboard provides a unified view of total workload across all work types. The Pull dashboard tracks cable routing progress by count, length, and labor effort. The Install dashboard monitors equipment mounting status across every area, deck, and system. The Connect dashboard brings cable termination and testing into a single view. The Transits dashboard tracks penetration sealing through every stage from open to sealed.
Each dashboard opens with a full-screen Overview section containing cable installation KPI tiles, status charts, and weekly trend charts — all visible without scrolling. Detailed breakdowns by area, deck, contractor, and system follow below. The structure is consistent across all five dashboards, which means users learn the interface once and navigate the full analytical suite immediately. This consistency reduces onboarding time and ensures that every coordinator, supervisor, and manager reads the data the same way.
Real-Time Field Data Powering Every Dashboard
The analytical layer is only as current as the data feeding it. Cable Pilot’s smartphone app enables field workers to submit status updates in seconds using QR code scanning and one-click workflows. Every cable pulled, every piece of equipment mounted, and every connection completed flows instantly into the central database — making every real-time installation dashboard genuinely live.

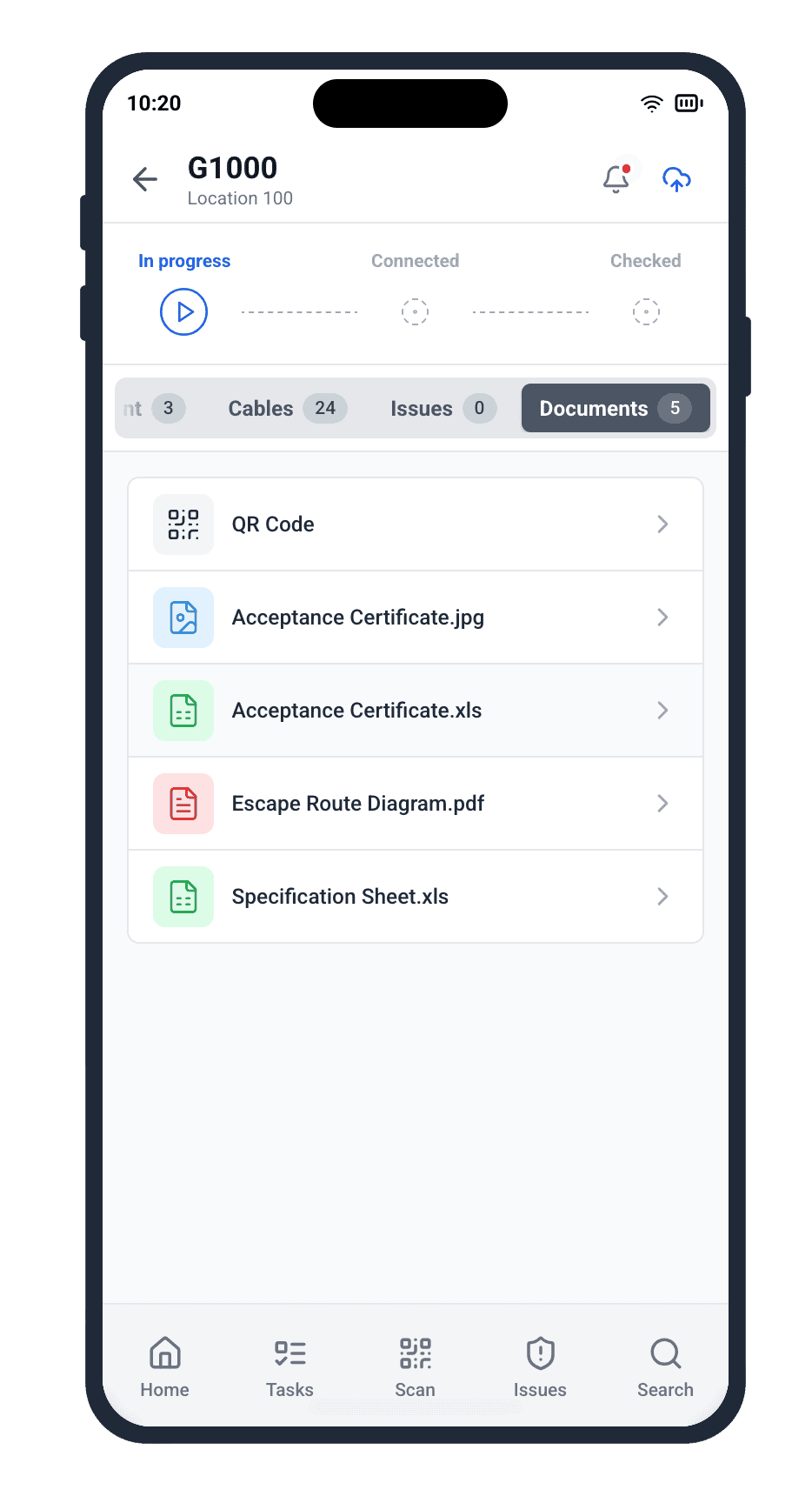

The mobile app gives field crews immediate access to technical documentation, cable details, and equipment data on their device. Workers see what needs to be done, report what they have completed, and move on. Their data becomes the foundation for every chart and forecast in the electrical installation insights suite, ensuring managers always see the current project picture.
Cable Points: Measuring True Workload, Not Just Item Counts
Counting cables is a fundamentally insufficient measure of electrical installation progress. A simple lighting circuit and a heavy power feeder are not equivalent units of effort, yet raw item counts treat them as identical. Cable Points resolve this by assigning a standardized workload value to each cable and equipment item based on its actual installation complexity. Progress percentages built on Cable Points reflect genuine labor consumption rather than misleading tallies.
The Cable Points dashboard presents the most comprehensive view in the analytical suite: total workload across all work types — Pull, Mount, Connect, and Transits — visualized in a single overview. Donut charts show workload distribution by type. A weekly bar chart tracks completed Cable Points from project start to the present week, making it immediately clear whether project pace is building, stable, or declining. Average weekly performance and the calculated shipyard project forecasting figure appear alongside the charts, placing historical trends and forward projections in the same view.
Pull Progress: Cable Routing Tracked to Completion
The Pull dashboard delivers detailed tracking for cable routing. Three KPI tiles show total cable count, total pull length in meters, and total workload in Cable Points. Charts break down cables by stage — To Pull, Pulling, and Pulled — measured by count, length, and workload simultaneously. A project with many short cables pulled but long routes remaining shows very different numbers across these views.
Contractor comparisons place each team’s performance side by side with completed and remaining work. A weekly throughput chart shows pulling progress from project start to today. Placing current status alongside historical pace is where raw figures become genuine electrical installation insights that reveal whether a contractor is on track or quietly falling behind.
Equipment Installation: Mounting Progress by Area, Deck, and System
The Install dashboard tracks equipment mounting status across the vessel. Summary KPI tiles display total equipment count, mounted count, average weekly workload, and calculated weeks to completion. Status charts show the distribution of equipment across Mounted, In Progress, To Mount, and Not in Scope categories — by both count and workload percentage. When multiple contractors share equipment installation across overlapping systems on the same build, the system-level breakdown is where scope gaps and scheduling conflicts become visible before they escalate.
Cable Connection: Termination and Testing in One View
The Connect dashboard brings cable connection progress and testing status into a single view. Four KPI tiles answer the core scheduling question: average weekly connections, connections remaining, average weekly workload, and weeks to completion. Donut charts show distributions across Connected, Connecting, and To Connect stages for cable connections, equipment connections, and workload. A separate testing status chart — categorizing cables as no test, to test, testing, tested, and failed — sits alongside the connection data. Combining both in one analytical view supports electrical progress monitoring without cross-referencing separate reports.
Area, deck, contractor, and system breakdown tables complete the cable installation KPI picture for the connection phase. Each section carries independent filters for deeper cross-comparison, and every row supports drilldown into detailed records. Since cable testing and connection termination are closely linked in the inspection and handover workflow, the combined view reduces the need for separate QA reports and keeps coordinators focused on the data that matters.
Electrical Progress Monitoring: Surfacing Issues Before They Derail the Schedule

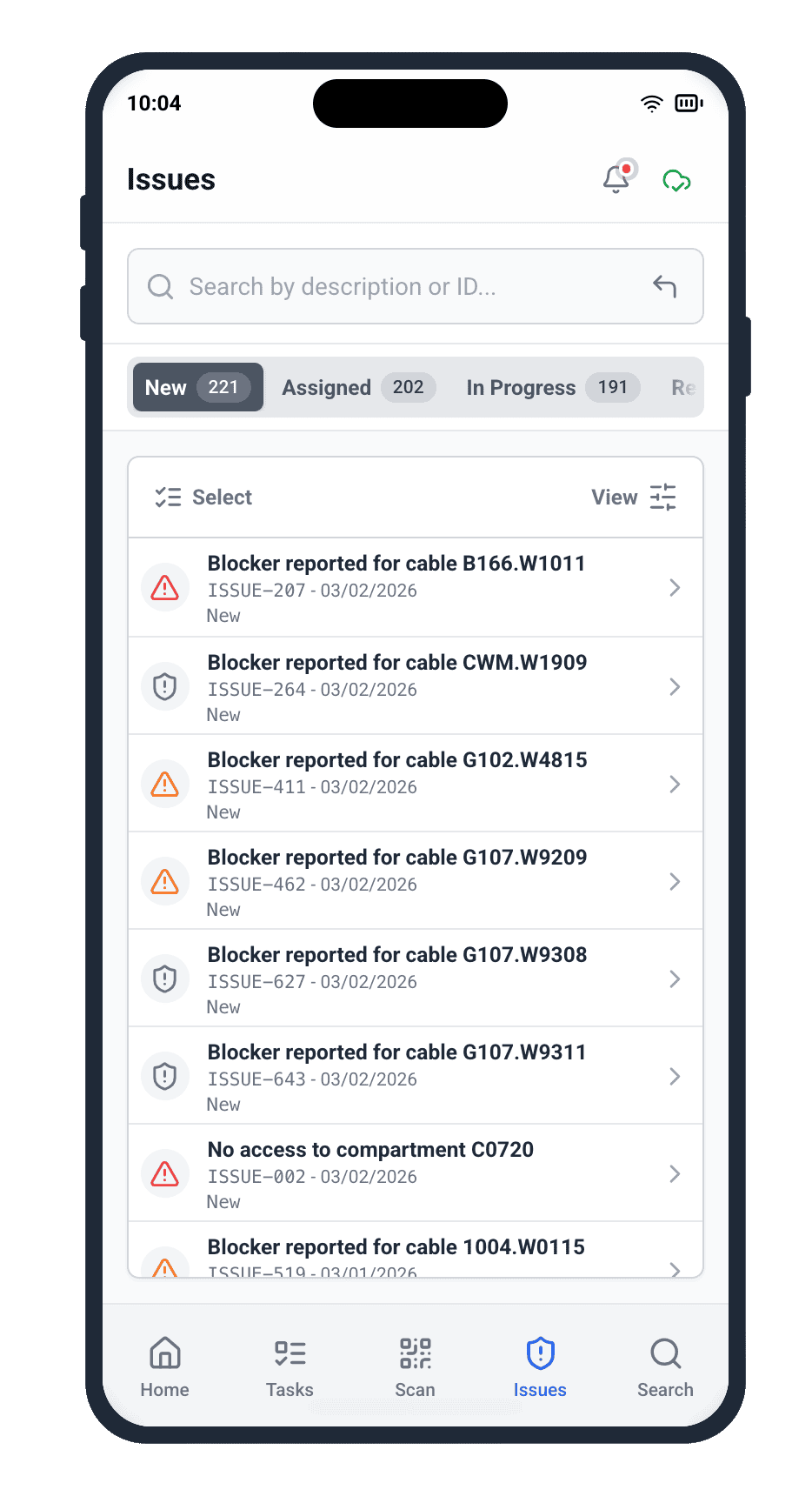

Analytics dashboards are most valuable when they reveal problems while there is still time to act. Cable Pilot’s electrical installation insights integrate issue visibility into every progress view. When an installer encounters a blocked route, missing equipment, or a failed test, they log it from the mobile app with a structured description and photo evidence. The issue appears immediately in the relevant dashboard.
A coordinator reviewing the Connect dashboard does not just see connection percentages — they see which cables have active blockers preventing progress. This transforms electrical progress monitoring from passive reporting into an active management tool. Schedule risks surface when they emerge, not a week later in a contractor summary.
Transit Sealing: Penetration Closure Tracked Through All Stages
Transits — cable penetrations through bulkheads and decks — are among the most compliance-sensitive elements of vessel electrical work. Their completion status determines when compartments can be closed and submitted for inspection by classification societies such as DNV. The Transits dashboard tracks each penetration through four stages: open, filling, filled, and sealed. KPI tiles show total transit count, sealed count, average weekly workload, and weeks to completion.
Status charts and weekly trend lines provide both a current snapshot and a historical view of sealing throughput. Area and deck breakdown tables show completion percentages per stage for each zone and deck level, directly answering the pre-handover question coordinators ask most often: which compartments are ready to close? This level of granularity in the analytics layer is what enables reliable handover scheduling rather than optimistic guesswork.
Statistics Across Every Organizational Dimension
Beyond the five process dashboards, Cable Pilot provides comprehensive statistics views for cables and equipment separately, plus a combined view that merges both data streams into a single aggregated table. Statistics are available broken down by discipline, contractor, deck, and area. The combined view is especially useful during the connection and testing phases, when the pace of cable work and equipment readiness need to be understood in relation to each other — placing all cable installation KPI figures for each dimension in a single row.
Interactive Dashboards for Every Stakeholder
All five Insights dashboards share a consistent filtering model. Core filters for Area, Deck, and Contractor update all overview metrics instantly, with additional System and Location filters available on the Install and Connect dashboards. A coordinator focused on a specific zone selects their area and sees only the relevant numbers. A contractor supervisor isolates their team’s performance in seconds. Below the overview, breakdown sections carry independent filters for deeper comparison and drilldown into individual records.
Cable Pilot’s real-time installation dashboard is designed for multiple user roles. Project managers, supervisors, quality managers, and external planning managers each access dashboards relevant to their responsibilities. Role-based access ensures every user receives a focused interface aligned with their role — not a full data set requiring extensive filtering to become useful.
Shipyard Project Forecasting Built Into Every Dashboard
Every Insights dashboard includes an automatically calculated forecast: the number of weeks remaining to complete the current scope, derived directly from the actual average weekly pace recorded in the system. This figure is not entered by a planner or estimated in a meeting. It is computed from the real rate at which work is being completed and updates as new field reports arrive.
For cable pulling, the forecast is calculated per contractor, so it is immediately clear which teams are on pace and which present schedule risk. For connection and transit sealing, forecasts appear at project level and within the area and deck breakdown tables. This shipyard project forecasting capability gives coordinators the factual basis to reallocate resources before a delay becomes structural rather than manageable. Forecast figures sit alongside the weekly progress charts in every Overview section, pairing historical performance with forward projection in the same view.
Contractor Performance Monitoring in Real Time
In multi-contractor vessel projects, understanding each team’s actual performance is essential for schedule control. Cable Pilot’s dashboards provide dedicated contractor breakdown tables in every process view — pulling, mounting, connection, and transit sealing. Each table shows completed and remaining work by count, length, and Cable Points, with an independently calculated forecast for each contractor.
This per-contractor visibility eliminates the reliance on self-reported progress figures. When a contractor claims to be on schedule, the data confirms or contradicts that claim in real time. Weekly throughput charts per team show whether performance is accelerating, stable, or declining. The factual basis for resource discussions is always available, turning schedule meetings from debates about estimates into reviews of measured performance.
From Stale Reports to Live Electrical Installation Insights
Before Cable Pilot, the standard workflow for tracking electrical installation progress looked like this: contractors updated their own records, submitted weekly summaries, and coordination meetings were held on data that was already days old. The gap between what was happening on the vessel and what management knew was built into the process — a structural inefficiency, not an incidental one.
Cable Pilot’s electrical installation insights eliminate that gap. Every status update submitted through the smartphone app flows directly into the aggregated statistics and dashboard charts. When a cable is pulled, the Pull dashboard updates. When equipment is mounted, the Install dashboard reflects it. There is no intermediate step, no manual re-entry, no waiting for an end-of-week roll-up.
For projects where thousands of cables, hundreds of equipment items, and multiple contractors are active simultaneously across a vessel, that direct connection between field reporting and analytical dashboards is what enables genuinely proactive project management. Schedule risks surface when they emerge, not a week later. Forecasts update as pace changes. Progress monitoring becomes continuous rather than a periodic reconciliation.
Strategic Advantages of Data-Driven Installation Management
The Cable Pilot Insights dashboards are more than a collection of charts. They are an integrated system for strategic project management. By providing a multi-dimensional, real-time view of the entire electrical installation, they empower project teams to:
Identify bottlenecks proactively — see instantly if the connection phase is lagging behind pulling, or if a specific contractor is falling behind on equipment mounting. Optimize resource allocation — understand where labor effort is being spent and reallocate teams to address emerging problem areas before they impact the critical path. Improve shipyard project forecasting — replace guesswork with data-backed timelines derived from actual performance metrics. Enhance accountability — clear data by area, deck, and contractor enables fact-based conversations with team leads and subcontractors. Mitigate quality risks — early visibility into failure rates in cable testing or delays in transit sealing allows issues to be addressed before they escalate.
The Right Data for Every Decision
The layered navigation model — from project-level dashboard to a single zone to individual cable and equipment records — is what makes the real-time installation dashboard useful for daily operational decisions, not just periodic reporting cycles. A project manager checking overall status, a supervisor investigating a specific area, and a quality manager reviewing test results all navigate the same system with the same data, filtered to their specific needs.
Cable Pilot’s electrical installation insights platform gives every stakeholder in the electrical installation process — from the shipyard electrical coordinator to the contractor site supervisor — a shared, accurate, and current view of project status. That shared visibility, grounded in live field data, is how complex vessel projects are kept on schedule and delivered with the documentation integrity that classification societies and shipowners expect.
Transform Your Electrical Installation Insights Today
Managing shipyard electrical work without real-time analytics is managing in the dark. Cable Pilot’s Insights module replaces fragmented reports and stale summaries with a real-time installation dashboard that shows the truth about every installation phase — automatically, continuously, and across every organizational dimension of the project. From Cable Points workload to transit sealing, from contractor comparison to shipyard project forecasting, every metric a project manager needs is live and accessible.
See the difference that data-driven electrical installation insights can make for your next vessel project.
