Master Your Shipyard Boundaries with Digital Cable Transit Tracking
Managing structural penetrations is a high-stakes responsibility that demands absolute precision. Every wire passing through a bulkhead creates a potential vulnerability. It impacts the vessel’s structural and fire boundaries. Traditional methods rely on paper records, marked-up drawings, and disconnected spreadsheets to monitor these critical transit points. This analog approach creates massive information gaps. Managers operate on outdated assumptions rather than verified facts. You need a solution that brings absolute certainty to your penetration management. Digital cable transit tracking delivers this exact capability. It connects physical multi-cable transits directly to your central project office.
The Cable Pilot platform eliminates the chaos of manual penetration logs. It empowers your field teams with a robust smartphone application designed for harsh environments. It provides your management with powerful web-based dashboards for strategic oversight. Together, these tools deliver a single source of truth for all structural penetrations. Effective cable transit tracking transforms an error-prone administrative burden into a streamlined, verifiable, and highly predictable process.
The High-Stakes Challenge of Multi-Cable Transits
Shipbuilding requires routing thousands of electrical lines through hundreds of steel boundaries. Each penetration must be carefully packed, sealed, and inspected to maintain the vessel’s structural integrity. This is an incredibly complex logistical puzzle.
The Risks of Manual Penetration Management
Supervisors spend hours manually verifying which multi-cable transits are ready for sealing. They decipher handwritten notes and chase down pulling crews to confirm if all wires have been routed. This disjointed approach inevitably leads to unsealed penetrations, forgotten transit blocks, and failed classification society inspections. When a surveyor finds a single unsealed transit, it casts doubt on the entire shipyard electrical installation.
Moving Beyond Spreadsheets for Cable Transit Tracking
Modern construction requires moving away from static spreadsheets and manual checklists. A digital platform treats every penetration as a distinct, intelligent asset with its own complete lifecycle history. Cable Pilot registers every single Multi-Cable Transit (MCT), single pipe, fire damper, and cable gland in your centralized database. This advanced cable transit tracking ensures no boundary is ever overlooked during the chaotic construction phase.
Protecting Fire Boundaries and Structural Integrity
Fire boundaries are the most critical safety feature on any maritime vessel. A single improperly sealed penetration compromises the entire ship. Traditional tracking makes it difficult to prove that every block and seal was installed according to strict maritime regulations. Robust cable transit tracking provides undeniable digital proof that every penetration meets strict safety standards. It replaces optimistic guessing with hard, verifiable data.
Empowering Installers with Mobile Cable Transit Tracking
Field execution requires clear, immediate instructions delivered directly to the point of work. Installers cannot afford to walk back to the site office to check penetration drawings or verify cable lists. Cable Pilot puts all transit data directly into the worker’s pocket.
Instant Identification with QR Code Reporting
Every transit receives a unique identification label during project preparation. Installers use their smartphone camera to scan this physical tag. This simple action initiates QR code reporting, instantly bringing up the exact penetration record on their screen. Seamless cable transit tracking removes the risk of confusing similar-looking transits in dark corridors. The system identifies the asset instantly without any manual typing.
Accessing Precise XYZ Coordinates and Locations
Finding specific penetrations deep inside a vessel hull is notoriously difficult. The mobile app solves this by displaying precise spatial data. When an installer opens a transit record, they immediately see its relative coordinates, such as specific frame numbers, and exact XYZ spatial coordinates. They also see the specific Side A and Side B locations, linking two distinct compartments. Detailed cable transit tracking ensures workers always locate the correct structural boundary without wasting time searching.
The Search Function for Fast Asset Discovery
The mobile application includes a powerful search function specifically designed for penetration management. If a label is damaged, the installer can use the live search feature. They can filter by Locations, Penetrations, or Issues. The search results instantly display the relevant asset along with its current status icon. High-level cable transit tracking ensures that finding the right structural boundary is always fast and intuitive, even in the most complex vessel areas.
Viewing Transit Capacity and Cable Routing

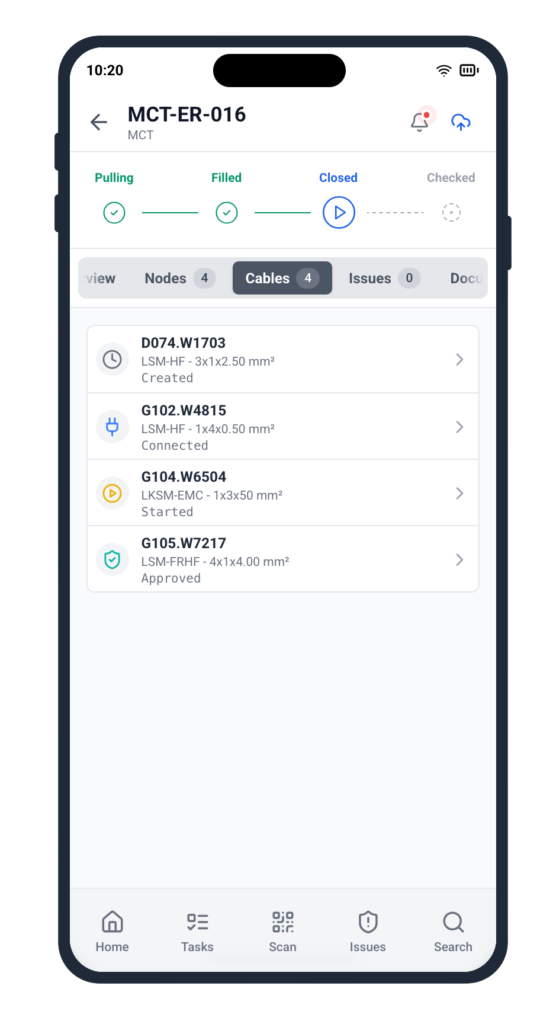

Once scanned, the mobile app reveals complete technical context. The installer sees exactly how many lines are scheduled to pass through the penetration. They can view the specific entry and exit nodes for proper routing. They can scroll through the exact list of assigned cables, verifying specifications like diameter and segregation requirements. Superior cable transit tracking gives the worker total visibility into the approved design before they pull a single wire.
Streamlining the Sealing and Checking Workflows
Managing a penetration is a multi-step journey. It requires careful coordination between pulling crews, sealing specialists, and quality inspectors. Cable Pilot manages this journey through strict, predefined lifecycle stages embedded directly into the software.
Four Stages of Cable Transit Tracking
The smartphone application tracks penetrations across four distinct, sequential statuses. These are Pulling, Filled, Closed, and Checked. This granular visibility is a massive upgrade over simple checkboxes found in generic software. Advanced cable transit tracking provides supervisors with the exact state of every structural boundary, ensuring that sealing only begins when pulling is definitively complete.
Managing the Pulling and Filled Stages
When pulling crews are routing wires through the transit, the status remains in the Pulling stage. Once all scheduled lines are successfully routed, the crew updates the status to Filled. This acts as a digital green light. It signals to the sealing team that the penetration is now ready for packing. Real-time progress monitoring ensures sealing crews are deployed exactly when and where they are needed, eliminating expensive idle time.
Closing and Checking with Photographic Evidence
After packing the transit blocks and tightening the wedge, the sealing specialist marks the status as Closed. They use the smartphone application to attach a timestamped photograph of the sealed boundary, generating a formal Closing Report. Finally, the quality inspector reviews the physical work and the digital record. They execute a Checking Report and update the status to Checked. Meticulous cable transit tracking creates a permanent visual record of the completed work.
Real-Time Progress Monitoring for Shipyard Managers
Field updates mean nothing without proper aggregation and expert analysis. The data captured by the mobile app flows instantly into the central web platform. This is where site supervisors and project managers gain total control over the production environment.
The Transits Dashboard for Cable Transit Tracking
Cable Pilot features a dedicated Transits Dashboard designed for strategic oversight. Managers can view objective metrics based on live field data rather than outdated spreadsheets. The dashboard displays the total number of penetrations, alongside precise counts for those marked as Closed, To Close, or Filled. Reliable cable transit tracking allows you to see the exact status of your fire boundaries across the entire vessel at a single glance.
Tracking Workload and Forecasting Completion
The web platform calculates the actual labor workload required for penetration management. It tracks the average weekly workload and identifies emerging bottlenecks before they impact the critical path. The system uses historical completion rates to forecast exactly how many weeks remain until all transits are closed and checked. This predictive capability is a hallmark of premium cable transit tracking. It replaces optimistic guessing with hard, objective forecasting data that you can trust.
Ensuring Compliance in Shipyard Electrical Installation
Classification societies and regulatory bodies demand rigorous proof of compliance. Traditional paper-based quality checks for multi-cable transits are often incomplete, missing photos, or illegible. Compiling this data manually takes weeks of administrative effort.
Building an Immutable Audit Trail for Surveyors
Our platform automatically builds a complete digital passport for every penetration. It holds the complete, immutable log of every status change, timestamp, and user signature. Meticulous cable transit tracking ensures that every test result and inspection signature is captured digitally at the point of work. When the surveyor arrives, you do not hand them disorganized paper binders. You provide a comprehensive, searchable digital history.
Integrating Documents and Penetration Certificates

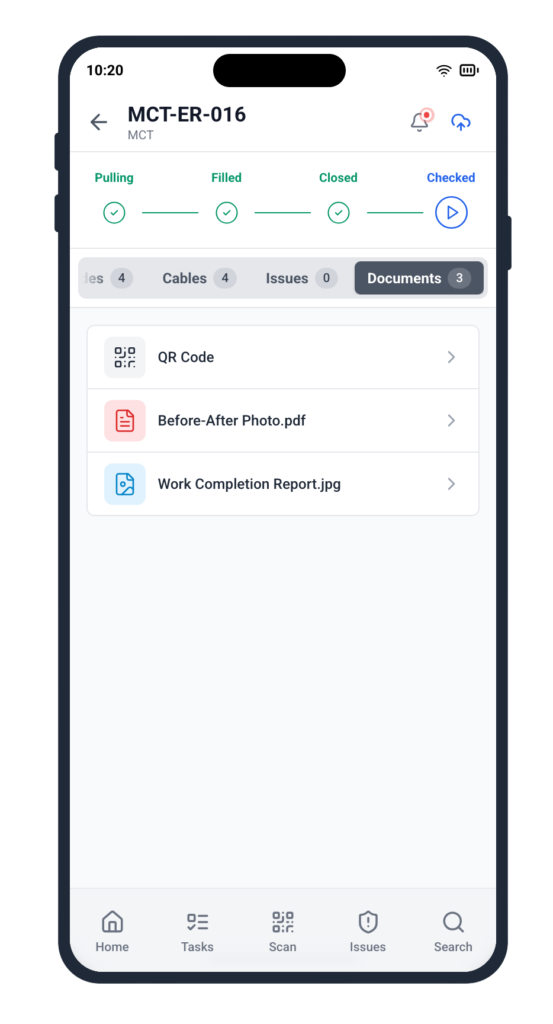

The mobile app provides a dedicated documents tab for every transit. Installers and inspectors can instantly access critical files directly on their smartphones. They can view Penetration Certificates, Work Completion Reports, and Before-After Photos without leaving the compartment. This centralization is vital for efficient shipyard electrical installation. Effective cable transit tracking means the surveyor can review all necessary documentation directly on a tablet, streamlining the final handover.
Solving Blockers with Proactive Cable Transit Tracking
Construction environments are incredibly dynamic. Unforeseen obstacles are inevitable on any shipyard deck. A transit might be blocked by intersecting pipework, the frame might be damaged, or access might be restricted by scaffolding.
Logging Issues Directly on the Penetration
When an installer encounters a problem, they do not wait for a supervisor to walk by. They use the smartphone app to instantly log a blocker against the specific transit. They utilize QR code reporting to identify the exact location and attach photographic evidence explaining the structural problem. Proactive cable transit tracking immediately routes this notification to the responsible design engineer or structural coordinator.
Accelerating Resolution for Multi-Cable Transits
This mechanism bypasses traditional, slow communication channels like email chains and voicemail. The issue is presented with full technical context and undeniable visual proof. Resolutions that previously took days of inter-departmental arguing are now executed in hours. Superior cable transit tracking ensures sealing crews are quickly redirected to available work fronts while the blocker is resolved.
Connecting Transits to the Project Digital Twin
Every transit is physically tied to specific bulkheads and decks. It does not exist in a vacuum. Cable Pilot maps these structural relationships within the vessel’s comprehensive digital twin.
Spatial Accountability for Cable Transit Tracking
The platform provides granular visibility across all physical construction zones. You can filter the Transits Dashboard by specific areas, decks, or individual compartments. This level of spatial accountability enhances your real-time progress monitoring significantly. Targeted cable transit tracking highlights emerging bottlenecks in specific rooms before they impact the overall project schedule. You manage the physical ship, not just a list of tasks.
Coordinating Multiple Trades Around Penetrations
Penetrations are shared assets. Structural teams weld the frames, electrical teams pull the wires, and specialized contractors pack and seal the blocks. Coordinating these distinct trades requires a neutral, centralized platform. Our system provides role-based access, ensuring everyone sees the same operational reality. Collaborative cable transit tracking aligns all contractors around a single source of truth, eliminating the blame game when delays occur.
Achieving Total Control with Digital Cable Transit Tracking
Managing structural penetrations requires absolute precision and constant vigilance. Outdated tools create dangerous information silos that drain your budget, extend your schedules, and jeopardize vessel safety. You need a solution built specifically for the complexities of maritime construction.
Cable Pilot transforms your entire penetration management operation. It empowers your field teams with simple, mobile data entry through QR code reporting. It provides your management with comprehensive real-time progress monitoring into every multi-cable transit. It enforces quality standards automatically and streamlines compliance documentation for surveyors. Embrace the future of shipyard electrical installation. Take complete control of your structural boundaries with our advanced cable transit tracking platform.
