The Scene: 07:45 on Tuesday morning. Fifteen minutes until the weekly progress meeting. The electrical coordinator opens a spreadsheet compiled from yesterday’s contractor reports and finds three different numbers for cables pulled on Deck 4. Two are probably wrong. All three are hours old. She has 900 cables on that deck—ranging from a two-metre signal wire to a 140-metre power run. Counting them equally tells her almost nothing. She closes the spreadsheet, picks up her coffee, and walks into the meeting with no defensible answer to the most basic question: are we on schedule?
This is where electrical installation projects slip. The gap between the numbers on paper and reality on the deck has always been vast. That gap is exactly what modern shipbuilding progress dashboard analytics are designed to close.
The Problem With Traditional Progress Reporting
The structural reason that traditional reporting fails is not laziness. It is architecture. Contractor reports arrive at the end of a shift, already aggregated by the contractor themselves, covering only their own scope. There is no neutral third party counting cables in real time. There is no single screen showing every deck, every system, every contractor—updated the moment a field crew logs a status change. Modern shipbuilding progress dashboard analytics fix exactly that gap.
Cable Pilot’s shipyard electrical oversight solves this through a real-time data pipeline that powers live shipbuilding progress dashboard analytics. Every status update submitted from the smartphone flows immediately into the central web platform. When an electrician marks a cable as pulled on Deck 7 at 14:32, the dashboard reflects that at 14:32. Not at the end of the shift. Not after the supervisor compiles the afternoon report. The moment the field action happens.
At the ship level, Cable Pilot’s shipbuilding progress dashboard analytics track total cable count, cables in-work, pulled, connected, and completed—expressed both as unit counts and as calculated length. Progress is rendered as a percentage, calculated two independent ways: by quantity and by length.
Those two percentages rarely match exactly, and the gap between them is informative. A vessel showing 70% completion by count but 55% completion by length still has a disproportionate share of its longer, heavier cables remaining. That is a schedule risk invisible to anyone relying on piece counts alone.
The shipbuilding progress dashboard analytics platform consolidates engineering data, field updates, and contractor activity into one unified dataset. No competing spreadsheets. No three-different-numbers problems. When the coordinator opens that 07:45 meeting, she opens one screen, not four files.
Multiple Viewing Angles: Deck-Level, System-Level, and Discipline Statistics
A vessel is not a single workfront. It is a stack of parallel workfronts that intersect in complicated ways. A coordinator managing Deck 7 does not need the ship-level number—she needs Deck 7’s number, broken out correctly.
Cable Pilot’s deck-level cable statistics, surfaced through the shipbuilding progress dashboard analytics, make a distinction that matters enormously in practice: cables that begin and end on the same deck are tracked separately from transit cables that pass through. Each category carries its own count, length, and status breakdown.
A deck can look nearly complete on its own-origin cables while still having dozens of transit cables outstanding. Those transit cables may be blocking progress on adjacent decks. The platform makes this visible. A deck is considered complete on transit cables when all transit cables passing through it have been pulled, and that condition is tracked explicitly rather than buried in aggregate numbers.
Deck level cable statistics also break down pulled status by contractor, making it immediately visible which teams are moving fast and which are lagging on a specific deck. A coordinator can compare contractor performance across any deck in seconds, without rebuilding contractor reports from scratch.
Inside the shipbuilding progress dashboard analytics, system-level statistics take a different cut through the same data. For every cable system, the platform displays total cables, cables in-work, checked, connected, and completed, alongside calculated length, pulled length, installed length, and length in-work.
System statistics are not just point-in-time snapshots; they carry a time-series history viewable by day, week, and month. A coordinator can look at a navigation system and see not just where it stands today, but whether progress this week is faster or slower than last week. That trend data is what separates a normal slowdown from a genuine problem.
Discipline statistics add a third dimension. Because a discipline is responsible for both cables and equipment, the discipline view covers both: cable count and length by status, plus equipment count and status. That matters when a discipline’s cable pulling is ahead of schedule but equipment installation has stalled. The two numbers diverge, and the divergence points directly at the blocker.
Across all of these views, systems and disciplines inherit blocked, failed, and damaged flags from their underlying cables and equipment. The combined statistics aggregation tracks blocked, failed, and damaged counts for both cables and equipment per aggregator—whether that aggregator is a discipline, a system, a contractor, a deck, or an area. A coordinator can filter immediately for any system that contains flagged assets, without scrolling through the full cable list to find the problem.
Cable Points: Honest Workload Measurement Instead of Wishful Counting
Pulling 48 out of 50 cables on a given deck sounds like 96% completion. The remaining two cables might be 80-metre armoured power runs through a congested lower deck space, routed through multiple penetrations, requiring a four-person team and a full day of work each. The project is nowhere near 96% complete on that deck. But the piece count says otherwise, and the piece count is what goes into the report.
Cable Points (CP) exist to prevent that kind of self-deception. The metric replaces unit counts with a workload-weighted score derived directly from each cable’s physical specification. Pulling labour intensity is calculated automatically: the cable’s length multiplied by a pulling labour factor determined by its type. A heavy armoured power cable through a congested route carries far more CP than a short signal wire in an open tray. The calculation happens automatically from specification data already in the system, not from anyone’s judgment.
Pulling Progress tracking displays Cable Points both at ship level and deck level. For each, the platform shows the spec value (total workload planned), total in-work, pulled, installed, and completed—in absolute CP and as a percentage of the spec baseline. That percentage is the honest number. It accounts for the grand pianos still sitting on the floor.
Connection workload runs through the same logic. Connection Cable Points are calculated per cable from its specification and tracked at ship level, deck level, and discipline level, with the same breakdown: spec, total, in-work, connected, and completed. Both absolute values and relative percentages are displayed, so a coordinator can compare workload completion against the baseline at every level of the hierarchy through the shipbuilding progress dashboard analytics.

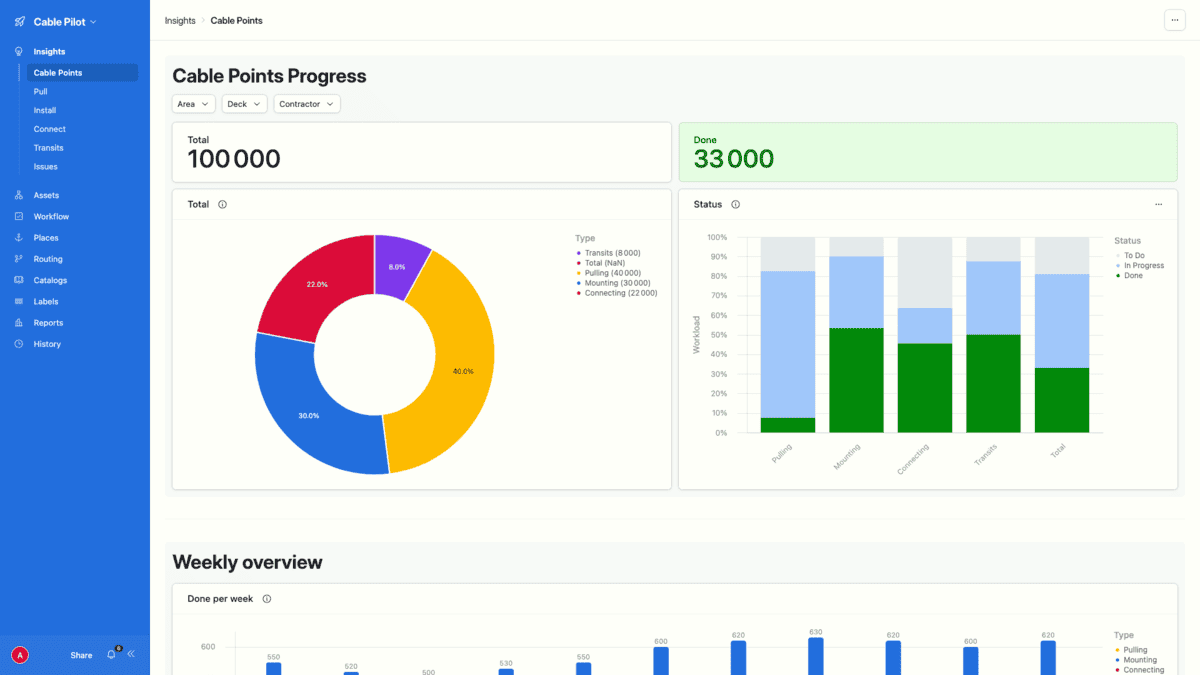

The Cable Points pulling dashboard presents this in a single screen: KPI cards showing total CP, CP completed, CP in-work, and a donut chart breaking workload down by cable type and installation stage. One screen replaces the mental arithmetic of trying to combine reports from multiple contractors into something coherent. A coordinator can filter by area, deck, or contractor to isolate specific portions of the vessel without losing sight of the overall workload picture across the shipbuilding progress dashboard analytics.
This approach transforms how contractor performance comparison happens in the shipyard. Instead of comparing two contractors on piece counts that ignore the actual work, the Cable Points metrics allow apples-to-apples assessment. A contractor pulling 200 CP per week versus one pulling 120 CP per week is a real performance difference. The comparison is objective, calculation-based, and driven by actual field data rather than subjective estimates.
Shipbuilding Progress Dashboard Analytics: From Pulling to Connection
Cable installation is not one event. It is a sequence: pulling, installation (securing and sealing at penetrations and trays), connection, testing, and handover. A coordinator who only monitors pulling has no way of knowing whether connected cables have passed insulation resistance tests, or whether equipment is ready for energisation. Each stage requires its own view inside the shipbuilding progress dashboard analytics.
The Pulling Progress screen in Cable Pilot provides three KPI cards—Length, Workload in Cable Points, and Count—each paired with a donut chart breaking down pull status across those three dimensions. The screen is filterable by Area, Deck, and Contractor, so a coordinator can isolate Deck 4 and see its pull status in length, workload, and count without recalculating anything manually inside the shipbuilding progress dashboard analytics.

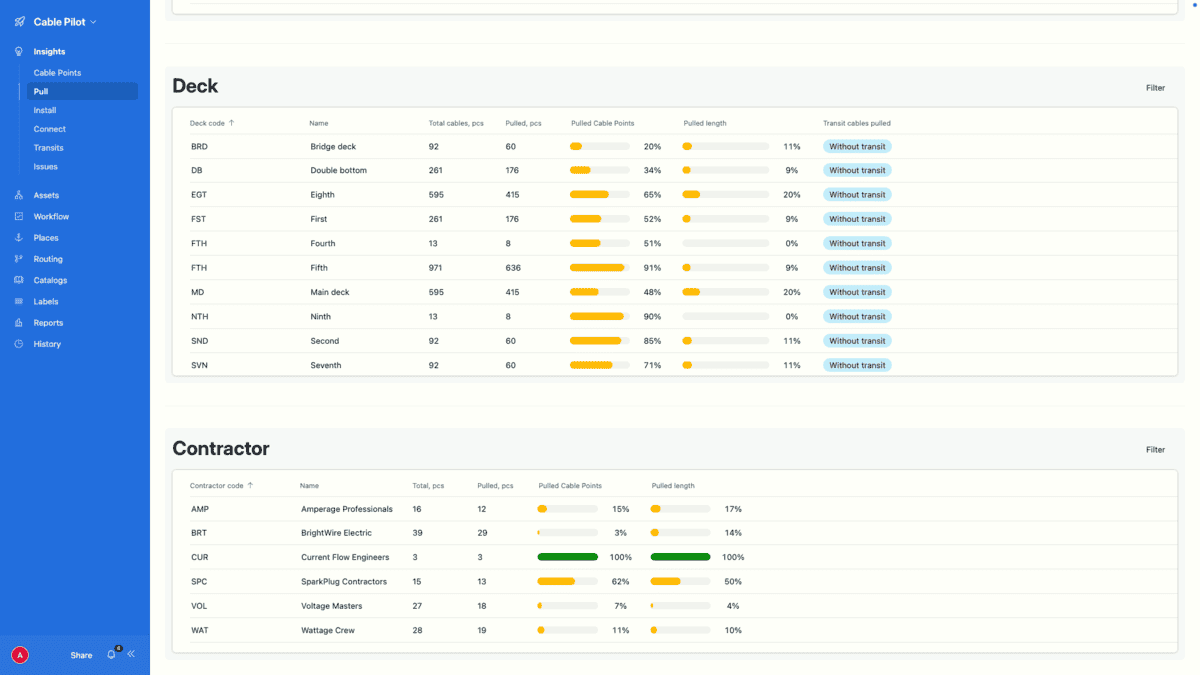

Below the KPI cards, the pull report table lists every deck and every contractor with columns for total cables, pulled count, pulled Cable Points percentage, pulled length percentage, and transit status. Up to 11 deck locations and 6 contractors appear side by side, with progress bars making the comparison immediate. It is immediately obvious which deck is behind on Cable Points even if its piece count looks acceptable, and which contractor is lagging while others maintain pace.

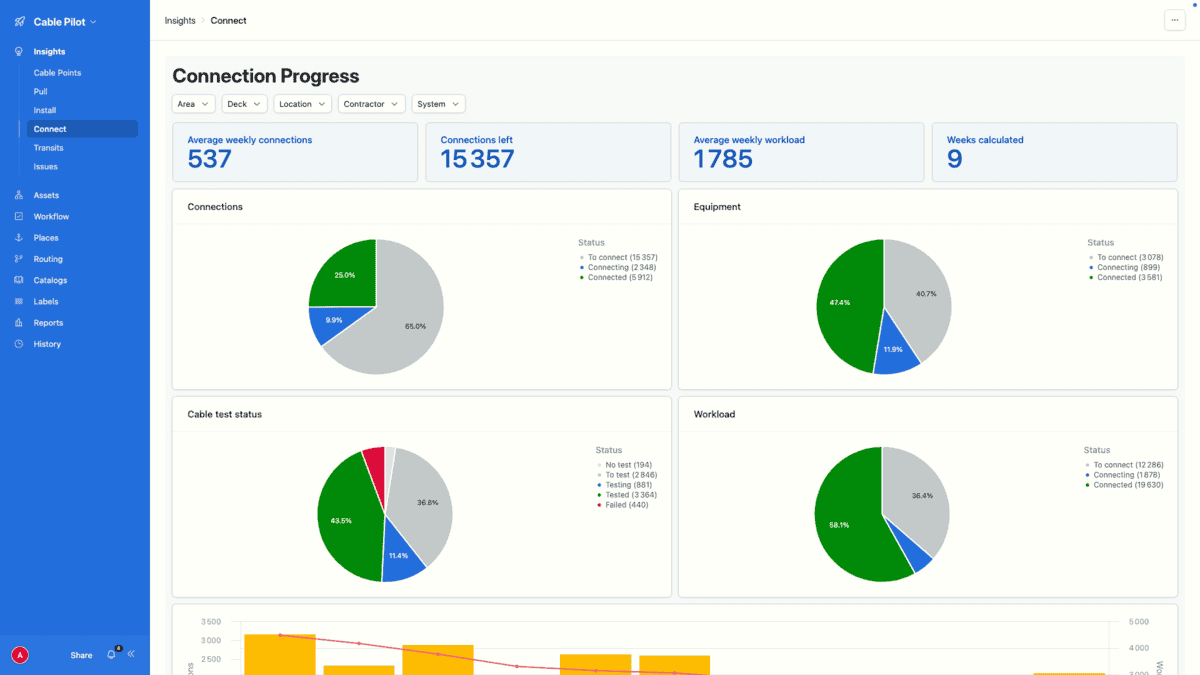

Inside the shipbuilding progress dashboard analytics, the Connection Progress screen shifts the frame of reference. Instead of asking where things stand right now, it asks when they will be done. Four KPI cards display average weekly connections, connections remaining, average workload per connection, and weeks-to-completion calculated from current velocity. These numbers update with every field scan. This is not a static forecast entered at the start of the project, but a live calculation derived from actual measured progress. Connection progress forecasting tracks both cable count and equipment readiness, accounting for the fact that a cable cannot be energised until both it and its connected equipment have passed all testing and inspection requirements.
Connection progress is further broken down by Area and by Deck in summary tables, each showing cable count, connected versus pulled percentage, equipment connected percentage, and workload percentage. A coordinator can see not just total completion but where the connection work is concentrated and where it is stuck. If Deck 3 shows 85% cables pulled but only 40% cables connected, that is a clear signal that deck-level connection work has stalled—and the platform shows that instantly without requiring manual aggregation.
Cable category statistics round out this stage-by-stage picture. For any specific cable category—power, signal, instrumentation, or others defined in the project—the platform shows count, length, and time-series history by day, week, and month, independent of the full cable list. A coordinator can track power cable progress separately from signal cable progress, allowing different work teams to be managed against their specific performance baselines.
Contractor Performance Comparison Built Into the Data Architecture
Multi-contractor shipbuilding projects have a persistent accountability problem. When progress slips, it is rarely immediately obvious whose scope is behind, because every number comes from the contractor whose scope it covers. There is no neutral baseline. There is no side-by-side comparison that all parties agree on before the meeting starts.
Within the shipbuilding progress dashboard analytics, Cable Pilot’s contractor-level statistics create that neutral layer. For each contractor, the platform displays which cables they are responsible for, count and meterage by status, percentage completion by global status, and a time-series performance trend over time. That last element matters more than the point-in-time number. A contractor at 60% completion whose weekly velocity has been declining for three consecutive weeks is a different situation from one at 55% but accelerating. The trend is what drives the right decision.
The pull report makes the contractor performance comparison explicit. Progress bars per contractor appear in the same table as progress bars per deck, with pulled Cable Points percentage and pulled length percentage shown side by side for all firms. The comparison is on the same metric, drawn from the same dataset. No contractor can argue with the baseline because no contractor produced it.
The combined statistics aggregation adds a further layer. Blocked, failed, and damaged counts are maintained per contractor across both cables and equipment. A coordinator can filter the contractor view to show only contractors with blocked cables outstanding—a targeted question that would previously have required cross-referencing multiple reports and waiting for contractor responses.
Because all of this data originates from field scans and smartphone app status updates, not from contractor-submitted reports, the numbers are neutral by construction. No one entered them on behalf of a contractor. The electricians on deck entered them, one cable at a time, as the work happened. That data integrity is the foundation of fair contractor performance comparison.
Forecasting Completion: From Current Velocity to Honest Timeline Estimates
The most valuable question in any progress meeting is not where things stand. It is when they will finish. Reporting current status without a credible forecast is like reading a speedometer without a fuel gauge—useful, but incomplete.
Cable Pilot’s connection progress forecasting capability sits at the heart of the shipbuilding progress dashboard analytics, built on the same data that drives the progress numbers. Because Cable Points measure actual workload rather than piece counts, and because velocity is measured continuously rather than estimated once at project start, the forecast is derived from what the project is actually doing.
The Connection Progress screen calculates weeks-to-completion from current average weekly connection velocity and connections still outstanding—a number that updates with every field scan. When velocity drops, the forecast extends. When a backlog clears and pace increases, it contracts. The number is honest because it has no choice but to be.
Within the shipbuilding progress dashboard analytics, time-series history at system, discipline, and category level supports day, week, and month granularity. That granularity makes it possible to identify when velocity started declining, not just to discover the problem at a missed milestone. A system that has been losing ground week on week does not announce itself in a point-in-time snapshot. It is visible only in a trend, and the trend is what triggers the right intervention at the right time.
Ship-level Cable Points completion percentage provides the honest baseline for all of this. If 60% of Cable Points workload is complete at the 40% mark of the planned timeline, the project has room. If 40% of CP is complete at the 60% mark, the intervention cannot wait for the next monthly review. That clarity comes directly from workload-weighted metrics rather than piece counts.
The shipbuilding progress dashboard analytics combine all dimensions—deck, area, system, discipline, contractor, supplier—into a single coherent dataset. No dimension is calculated in isolation.
A coordinator at 07:45 on Tuesday opens the cable points pulling dashboard, sees Deck 4 at 61% pulled by Cable Points, notes that one contractor’s weekly velocity has dropped two consecutive weeks, identifies which cables are blocked and which contractor is responsible, and walks into the meeting with a specific question and the data to back it. Three conflicting spreadsheets have become one honest screen.
Deck-Level Details: Separating Own Cables From Transit Traffic
The distinction between own cables and transit cables is not semantic—it is operational. Own cables are the responsibility of the deck’s primary electrical team. Transit cables belong to other decks but pass through this one. Until transit cables are pulled, the deck’s completion status is artificially inflated, and coordinating work across decks becomes impossible.
Cable Pilot’s deck level cable statistics, presented within the shipbuilding progress dashboard analytics, separate these explicitly. Deck 4 might show 80% completion on own cables while transit cables are at 30%. That difference tells a story: own-cable work is on pace, but upstream decks are falling behind. That information is critical for re-sequencing work, adding crew, or adjusting contractor assignments.
The same deck-level view breaks down cable status by contractor, making it immediate and clear which contractor is responsible for each portion of work on that deck. A coordinator can see that Contractor A pulled 50 cables on Deck 4, Contractor B pulled 30, and Contractor C has 35 remaining. That level of detail enables real-time work allocation and accountability without requiring manual report compilation.
Across multiple decks, the deck statistics views roll up into a complete vessel picture. A coordinator can scan a table showing all decks, their own-cable completion, transit-cable completion, cable count, cable length, contractor breakdown, and blockers in one view. What previously required four separate reports now appears on a single dashboard screen.
From Abstract Data to Actionable Intelligence
The gap between “data exists” and “data is actionable” has always been wide in shipbuilding. Cable Pilot closes that gap by building dashboards around the questions coordinators actually need answered, not around the data available. The shipbuilding progress dashboard analytics architecture prioritizes immediate visibility, cross-dimensional comparison, and forward-looking forecasting.
When you manage electrical installation across multiple decks and contractors, these shipbuilding progress dashboard analytics capabilities transform from abstract concepts into working tools the moment you run them against your actual vessel data. Cable Points metrics that seem theoretical become concrete when applied to your specific cables, decks, and teams. Connection progress forecasting that sounds generic becomes exact when it is tracking your actual connection velocity and your actual outstanding workload.
Request a live demo of Cable Pilot using your project’s cable list, decks, and contractor structure. See how shipbuilding progress dashboard analytics, contractor performance comparison metrics, cable points pulling dashboards, and connection progress forecasting work with your real data, your real decks, and your real crews. Move from abstract concept to concrete tool in a single session.
